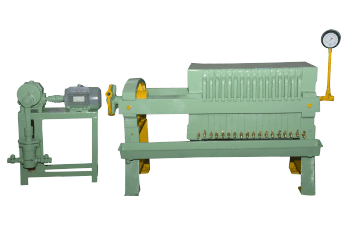

Filter Press - Mohit International

We supply a wide range of Filter Press, which are designed to give maximum filtration efficiency, longer life and least maintenance.

Size	Wt. of Filter Press (kgs.)	Filtration Area [Sq. Mtrs]	Capacity* [Liters/Day]	H.P	No. Of Piston	Size Of Plunger Pump
36″ x 36″ x 36 Plates	8000	30	40,000	7.5	Double	80mm
30″ x 30″ x 30 Plates x 29 Frames	5,500	18	25,000	7.5	Double	80mm
30″ x 30″ x 30 Plates	4,400	18	25,000	5	Single	80mm
24″ x 24″ x 24 Plates x 23 Frames	3,000	10	10,000	5	Double	60mm
24″ x 24″ x 30 Plates	2,750	15	12,500	5	Double	60mm
24″ x 24″ x 24 Plates	2,350	10	10,000	3	Single	60mm
18″ x 18″ x 18 Plates	1,100	4	5,000	2	Single	40 mm
14″ x 14″ x 14 Plates	650	2	3,500	2	Single	40mm
12″ x 12″ x 12 Plates	380	1.5	2,500	1	Single	30mm

Common RPM Of Plunger Pumps = 40 To 45

Size	Wt. of Filter Press (kgs.)	Filtration Area [Sq. Mtrs]	Capacity* [Liters/Day]	H.P	RPM of Pump	Type Of Pump
36″ x 36″ x 36 Plates x 35 Frames	10000	30	40,000	10	2900	Centrifugal

*Capacity differs with the quality of the oil to be filtered
